Medium & High Voltage Industrial Motors

High-performance medium and high voltage motor solutions from WEG and VEM for demanding industrial applications.

Product Range

WEG
Medium & High Voltage Motors

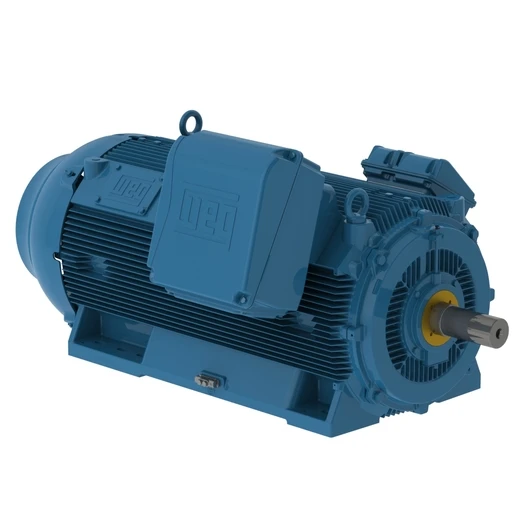

WEG HGF series medium and high voltage motors for industrial applications
WEG

HGF Series

High-performance motors designed for demanding industrial applications. HGF motors offer high mechanical strength, reliable operation, and low maintenance requirements for harsh operating conditions.

Rated Output 75 - 2,800 kW
Frame 315 - 630 (IEC)
Voltage 380 - 13,800 V
Poles 2 - 12
Protection IP55 or higher
Cooling IC411, IC416

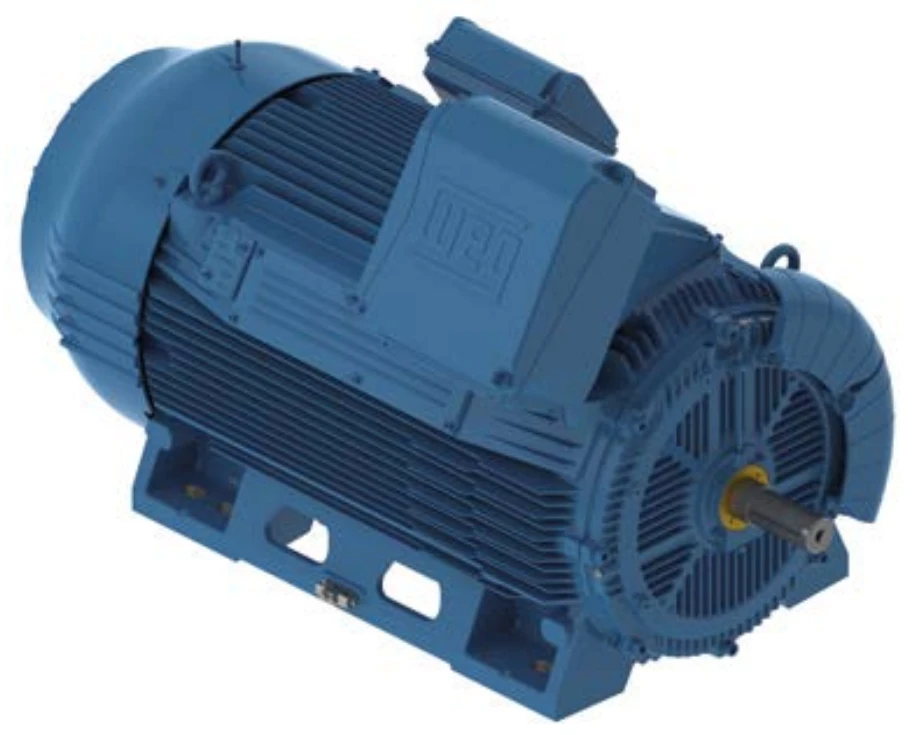

WEG W50 series medium and high voltage motor for industrial applications
WEG

W50 Series

Compact and robust motors designed to meet demanding efficiency and safety requirements. W50 motors provide reliable performance for a wide range of industrial applications.

Rated Output 110 - 1,100 kW
Frame 315 - 450 (IEC)
Voltage 380 - 6,600 V
Poles 2 - 12
Protection IP55 - IP66

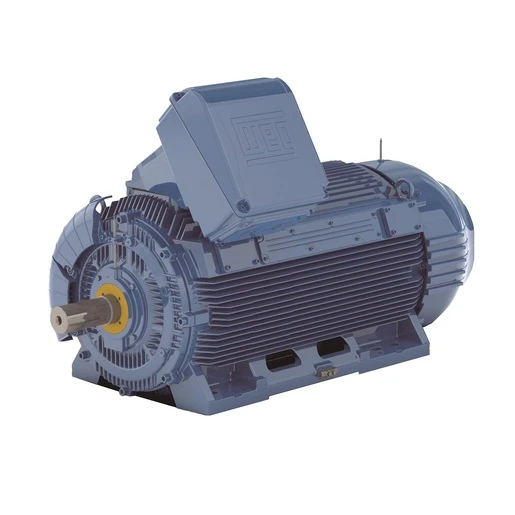

WEG W51HD series medium and high voltage motor for heavy-duty industrial applications
WEG

W51HD Series

High-power-density motors delivering increased power in a compact design. W51HD motors offer flexible configurations, high durability and excellent performance for diverse industrial applications.

Rated Output 132 - 1,400 kW
Frame 315 - 450 (IEC)
Voltage 220 - 11,000 V
Poles 2 - 12
Protection IP55 - IP66
Cooling IC411, IC416

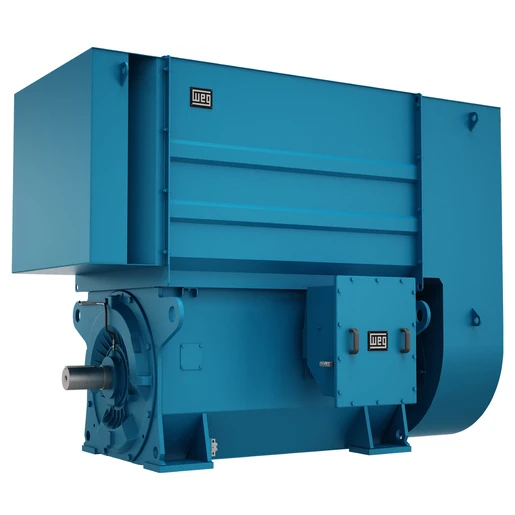

WEG W60 series medium and high voltage motor for industrial applications
WEG

W60 Series

Versatile and high-performance motors designed for a wide range of industrial applications. W60 motors provide reliable operation, high efficiency and durability in demanding environments.

Rated Output 185 - 16,000 kW
Frame 315 - 1,000 (IEC)
Voltage 400 - 13,800 V
Poles 2 - 16
Protection IP23, IP24W, IP55
Cooling IC01, IC611, IC81W

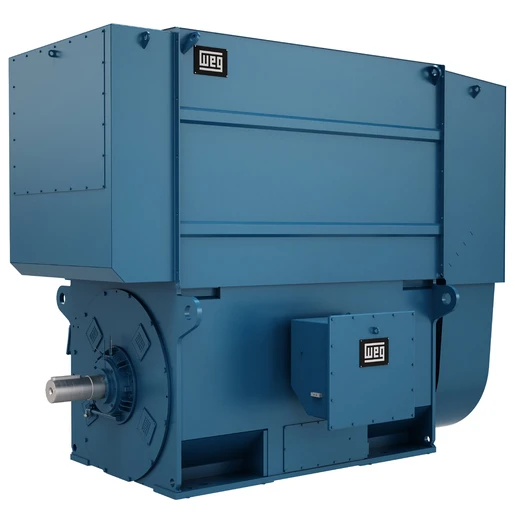

WEG Master series medium and high voltage motor for industrial applications
WEG

Master Series

A flexible motor platform engineered for demanding industrial applications. The Master Series combines robust design, customization options, and high reliability for harsh environments and variable-speed operation.

Rated Output Up to 50,000 kW
Frame 280 - 1,800 (IEC)
Voltage 220 - 13,800 V
Poles 2 - 14
Protection IP23 - IP65
Cooling IC01, IC31, IC81W, IC666

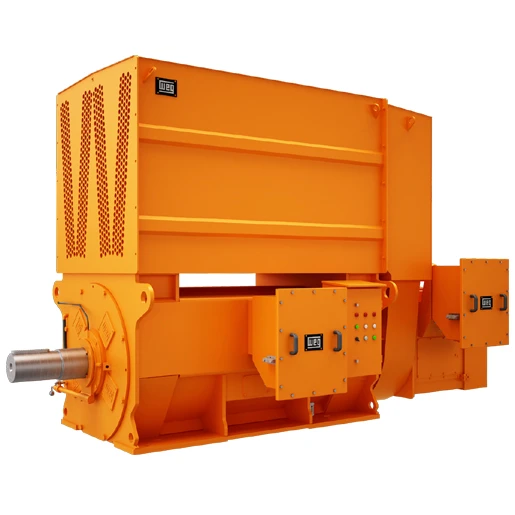

WEG MA Line series medium and high voltage motor for industrial applications
WEG

MA Line Series

Heavy-duty motors developed for mining and cement industries. MA Line motors provide high durability, mechanical strength and reliable performance in harsh operating environments.

Rated Output 250 - 10,000 kW
Frame 355 - 1,000 (IEC)
Voltage 220 - 13,800 V
Frequency 50 / 60 Hz
Poles 2 - 14
Protection IP55 - IP66
VEM
High Voltage Motors

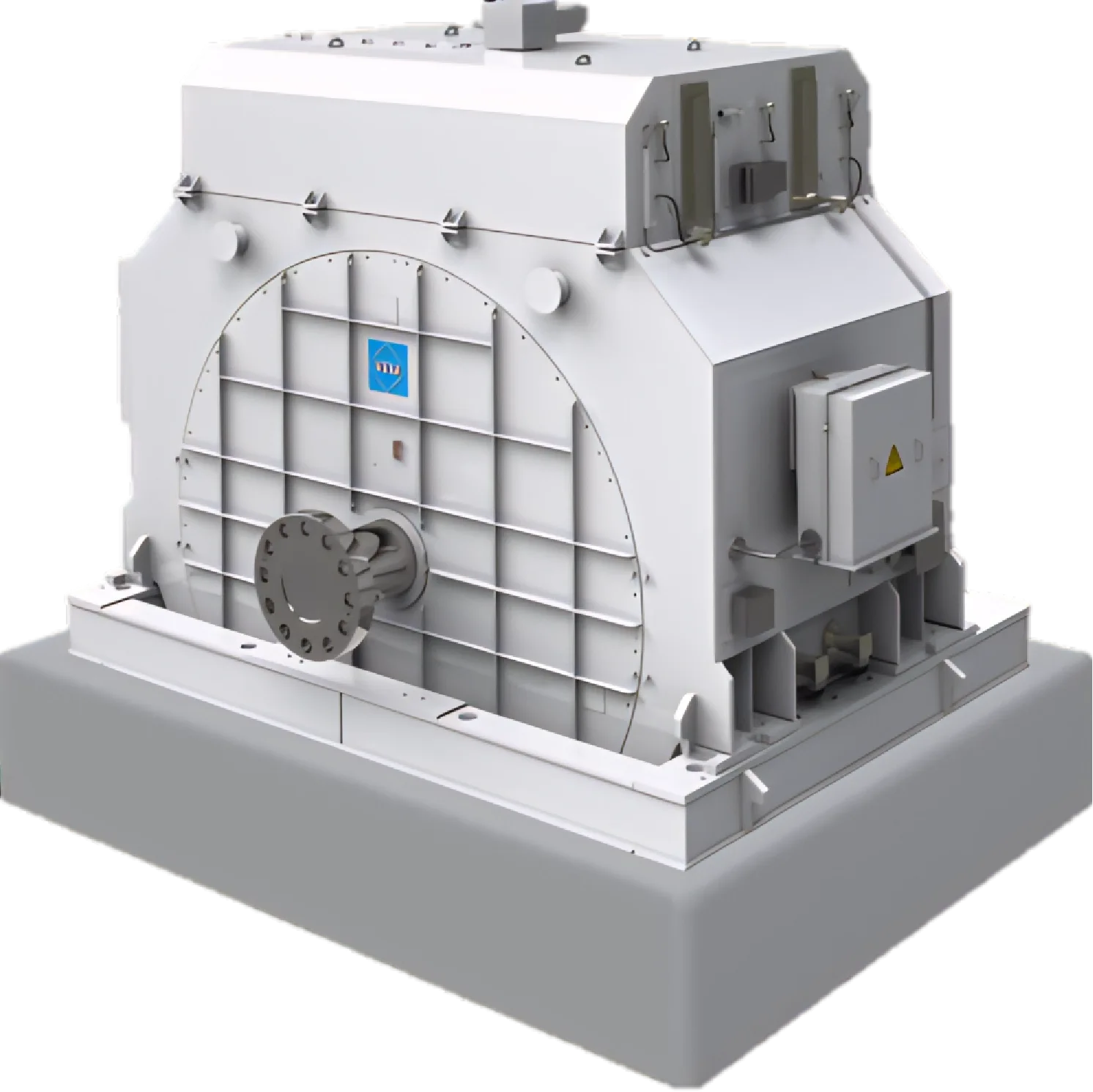

VEM high voltage synchronous motors for industrial applications
VEM

High Voltage Synchronous Motors

High-voltage synchronous motors designed for large-scale industrial applications, offering efficient operation, reliable performance, and flexible configuration options.

Rated Output 2,000 - 150,000 kW
Poles 2, 4, 6, 8 to 36
Voltage 690 - 15,000 V
Cooling Air-water cooled, Air-air cooled
Mounting IM B3, IM7115 and others
Bearings Rolling or plain bearings

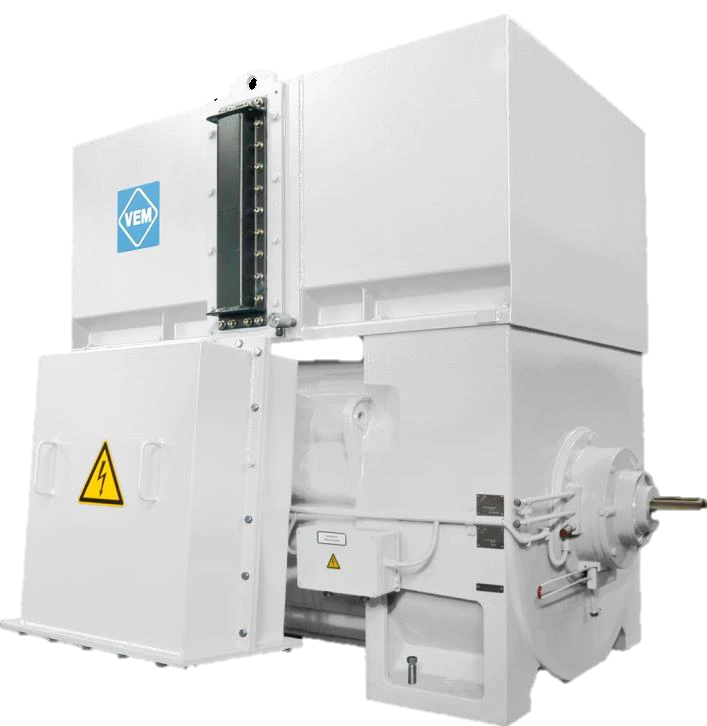

VEM high voltage asynchronous motors for industrial applications
VEM

High Voltage Asynchronous Motors

High-voltage asynchronous motors designed for demanding industrial applications, offering reliable performance, flexible configuration, and efficient operation.

Rated Output 200 - 40,000 kW
Poles 2, 4, 6, 8 to 24
Voltage 690 - 13,800 V
Cooling Air-water cooled, Air-air cooled
Mounting IM B3, IM7115 and others
Bearing Rolling bearing or plain bearing

Looking for the Right Medium or High Voltage Motor?

Share your application requirements and our team will provide professional motor selection support.

Get Technical Support
